Download BIM & CAD Files for Salter Stairs
Access Revit, DWG, and PDF files for our floating and spiral stair systems, kept up to date with current code and software versions so you can specify with confidence.
Browse our stair design files then download the exact BIM package you need for your project. Each entry includes a short description, file type, and size so you know what you’re getting before you click download.

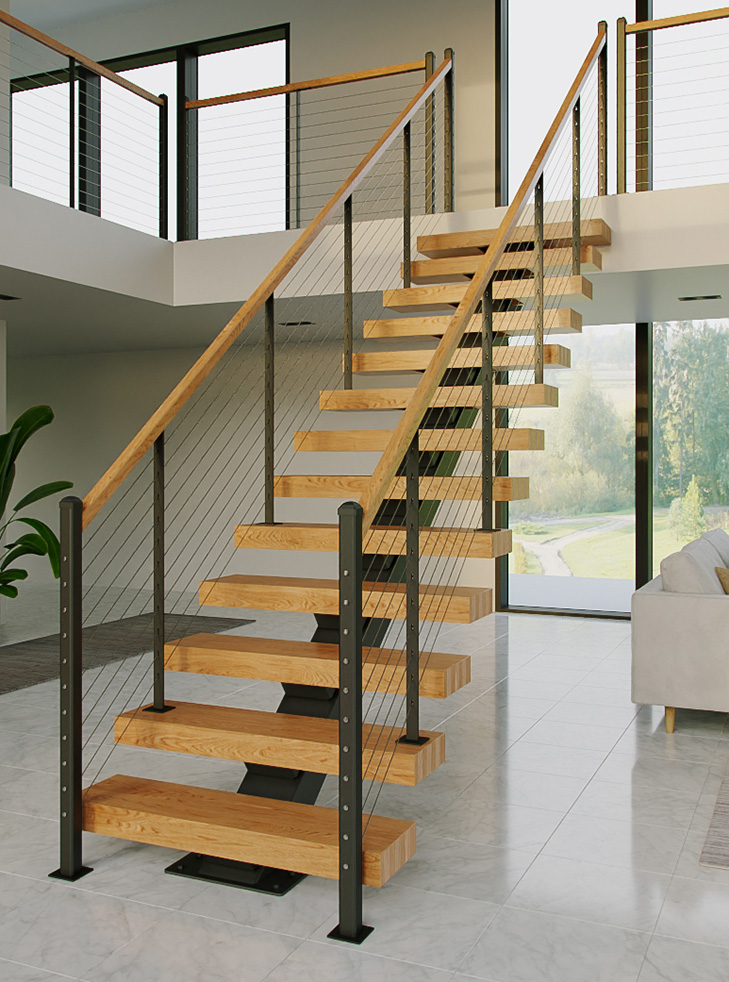

Mono Stringer Straight Run Floating Stair System
Mono Stringer Straight Run Stairs combine a clean visual line with structural strength.

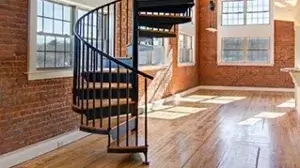

Configurable Classic Steel Spiral Stairs
Classic Steel spiral stairs offer a smart, space-saving solution with standout design flexibility.

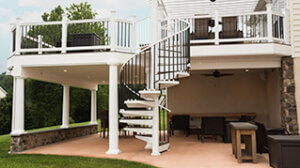

Configurable Aluminum Spiral Stair
The aluminum spiral stair is designed to fit outdoor spaces with custom finishes.

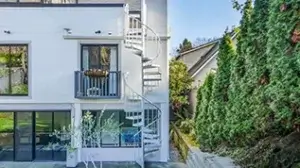

Configurable Galvanized Spiral Stair
Galvanized Steel is a fully weatherproof frame is treated with a hot-dip galvanizing process.

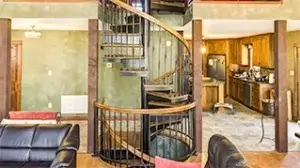

Forged Iron Spiral Stair
Blend ornate design elements with wood textures for a staircase that’s classic.

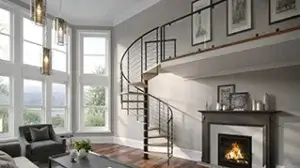

Compression Spiral Stair
Get the beauty of an all wood spiral staircase with the ultimate convenience of a DIY kit.

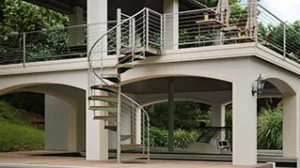

Adjustable Aluminum Spiral Stair
Adjustable Aluminum delivers durable performance with a weather-resistant design.
This library gives architects, engineers, and builders fast access to staircase models and details that drop directly into your BIM workflow.
Revit families for core stair and railing systems
2D DWG and PDF details for sections, connections, and typical conditions
Versioned files with clear naming and update dates
Code-aligned geometry to help reduce RFIs and change orders
Search by system, material, and file type to find the right content in a few clicks.
Models and details are based on current Salter engineering standards and code requirements.
Consistent naming, layers, and dimensions make collaboration with other trades easier.
New and revised files are tagged with version dates and change notes.
